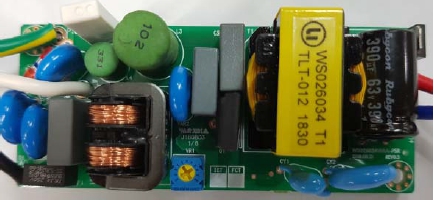

LED Driver (Output range 25～38V)
- Rated Input Voltage : 100～242V
- frequency : 50～60Hz
- Output Voltage : 25～38V (Typical 34V)
- Output current : 210mA (±5%)
- Efficiency : 82% min (at rated input condition)
- Power Factor : ≥ 0.9 at Rated Input Voltage

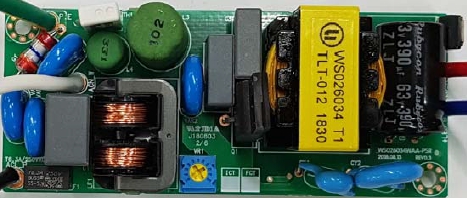

LED Driver (Output range 28～41V)
- Rated Input Voltage : 100～242V
- frequency : 50～60Hz
- Output Voltage : 28～41V (Typical 34V)
- Output current : 430mA (±5%)
- Efficiency : 82% min (at rated input condition)
- Power Factor : ≥ 0.9 at Rated Input Voltage 100VAC,
- ≥0.85 at Rated Input Voltage 242VAC

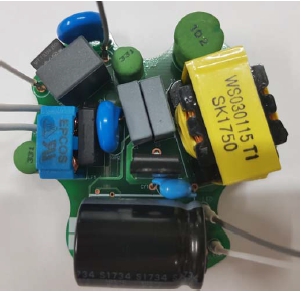

ランプ用電源 LED Driver for Lamp (WS030115)
- Rated Input Voltage : 100～242V
- frequency : 50～60Hz
- Output Voltage : 120V (±10%)
- Output current : 200mA (±10%)
- Efficiency : 85% min (at rated input condition)
- Power Factor : ≥ 0.9 at Rated Input Voltage

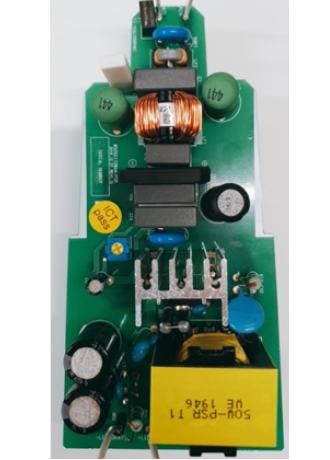

ランプ用電源 LED Driver for Lamp (WS050112)
- Rated Input Voltage : 100～242V
- frequency : 50～60Hz
- Output Voltage : 100～129V (Typical 112V)
- Output current : 410mA (±10%)
- Efficiency : 85% min (at rated input condition)
- Power Factor : ≥ 0.9 at Rated Input Voltage

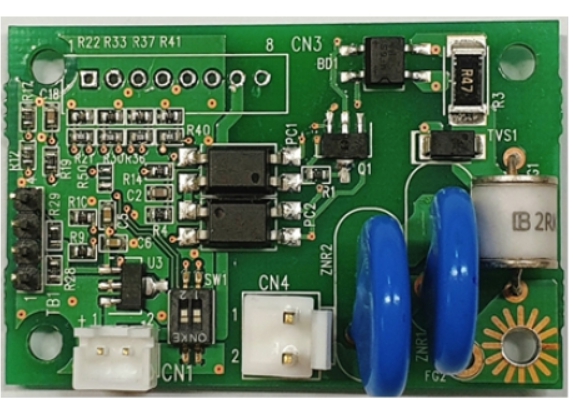

DALI2-PWM Signal Conversion Module
開発中 (Under Development)
LED照明用電源(LED Driver) 開発実績ラインアップ
製品名 | 定格消費電力 | 定格出力電圧 | 許容出力電圧範囲 | 定格出力電流 | 定格入力電圧 | 許容入力電圧範囲 | 縦サイズ(mm) | 横サイズ (mm) | 形状 | 用途(使用例) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| No.01 | WS0619LAA-TDMC | 5W | 18.9V | 260mA | 100VAC | 90~110VAC | 57 | 103 | 四角 | ダウンライト （3色調光、位相制御） | |
| No.02 | WS0718LAA-TDIM | 6.2W | 17.7 | 16.0-20.2V | 315mA | 100VAC | 90~110VAC | 28 | 33.6 | 四角 | LEDランプ （サーマル機能付き） |
| No.03 | PD0635LAA-NON | 7W | 34V | 31-37V | 165mA | 100VAC | 90~110VAC | 18.6 | 29 | 四角 | LEDランプ |
| No.04 | PD0635LAA-TDIM | 7W | 34V | 31-37V | 165mA | 100VAC | 90~110VAC | 18.6 | 29 | 四角 | LEDランプ （位相制御モデル） |
| No.05 | WS0831LAA-TDMC | 7W | 31V | 230mA | 100VAC | 90~110VAC | 57 | 103 | 四角 | ダウンライト （3色調光、位相制御） | |
| No.06 | WS01036WAA-NNL | 8.1W | 36V | 32.4~39.6V | 225mA | 100~200VAC | 90~220VAC | 30 | 170 | 四角 | LEDチップ一体基板 |
| No.07 | WS012034WAA-PSR | 8.5W | 34V | 25~38V | 210mA | 100~242VAC | 90~266.2VAC | 35 | 85 | 四角 | LEDランプ |
| No.08 | WS014305WAA-NOP | 14W | 30.5V | 430mA | 100~242VAC | 90~266.2VAC | 45 | 85 | 台形 | LEDランプ （人感センサー対応） | |
| No.09 | WS026034WAA-PSR | 17W | 34V | 28~41V | 430mA | 100~242VAC | 90~266.2VAC | 35 | 85 | 四角 | LEDランプ |
| No.10 | PD2440WAA-PSR | 25W | 38V | 32~42V | 570mA | 100/240VAC | 90～264VAC | 212 | 33.5 | 四角 | 直管用 （G13） |
| No.11 | PD02847WAA-NON | 25W | 38V | 27~47V | 600mA | 100VAC | 90~110VAC | 35 | 140 | 四角 | レールランプ |
| No.12 | WS025080WAA-PSR | 25W | 72V | 270mA | 100~242VAC | 90~266.2VAC | 55 | 140 | 四角 | 街路灯 | |
| No.13 | WS030115WAA-PSR | 28W | 120V | 108~132V | 200mA | 100~242VAC | 90~266.2VAC | 64 | 60.5 | 丸 | LEDランプ |
| No.14 | WS030072WAA-NON | 30W | 72V | 64.8~79.2V | 380mA | 100~242VAC | 90~266.2VAC | 136 | 68 | 台形 | LEDランプ |
| No.15 | PD03595WAA-DIM | 33.3W | 72V | 68-90V | 350mA | 100/242VAC | 90～264VAC | 360 | 32.1 | 四角 | 直管用 （JEL801-1灯用） |
| No.16 | PD05795WAA-NON (1.0A) | 40W | 36V | 31~42V | 1,000mA | 100VAC | 90~110VAC | 40 | 165 | 四角 | レールランプ |
| No.17 | PD05795WAA-NON | 50W | 63V | 54~72V | 600mA | 100VAC | 90~110VAC | 40 | 165 | 四角 | レールランプ |
| No.18 | WS050100WAA-NOP | 50W | 100V | 550mA | 100~242VAC | 90~266.2VAC | 68 | 135 | 台形 | LEDランプ （人感センサー対応） | |
| No.19 | WS050180WAA-PSR | 50W | 180V | 270mA | 100~242VAC | 90~266.2VAC | 55 | 140 | 四角 | 街路灯 | |
| No.20 | WS050112WAA-PSR | 50W | 112V | 100~129V | 410mA | 100~242VAC | 90~266.2VAC | 136 | 68 | 台形 | LEDランプ |
| No.21 | PD05795WAA-NON (1.25A) | 51W | 36V | 31~43V | 1,250mA | 100VAC | 90~110VAC | 40 | 165 | 四角 | レールランプ |
| No.22 | WS070154WAA-PSR | 61.6W | 154V | 137~170V | 400mA | 100~242VAC | 90~266.2VAC | 80 | 80 | 丸 | LEDランプ |
| No.23 | PD070190WAA-DIM | 66.5W | 144-190V | 136-202V | 350mA | 100/242VAC | 90～264VAC | 364 | 31.5 | 四角 | 直管用 （JEL801-2灯用） |
